Qualcomm SM6225 ISP Pinout Download By support.xdarom.com

The Qualcomm SM6225 (Snapdragon 680) is one of the most widely deployed mid-range SoCs in 2023–2026 devices from Xiaomi, Realme, OPPO, Samsung, Vivo, and more. When a device fails to power on, gets stuck in EDL mode, or has a damaged eMMC/UFS, technicians rely on ISP (In-System Programming) Pinout to directly access the storage and re-flash the firmware.

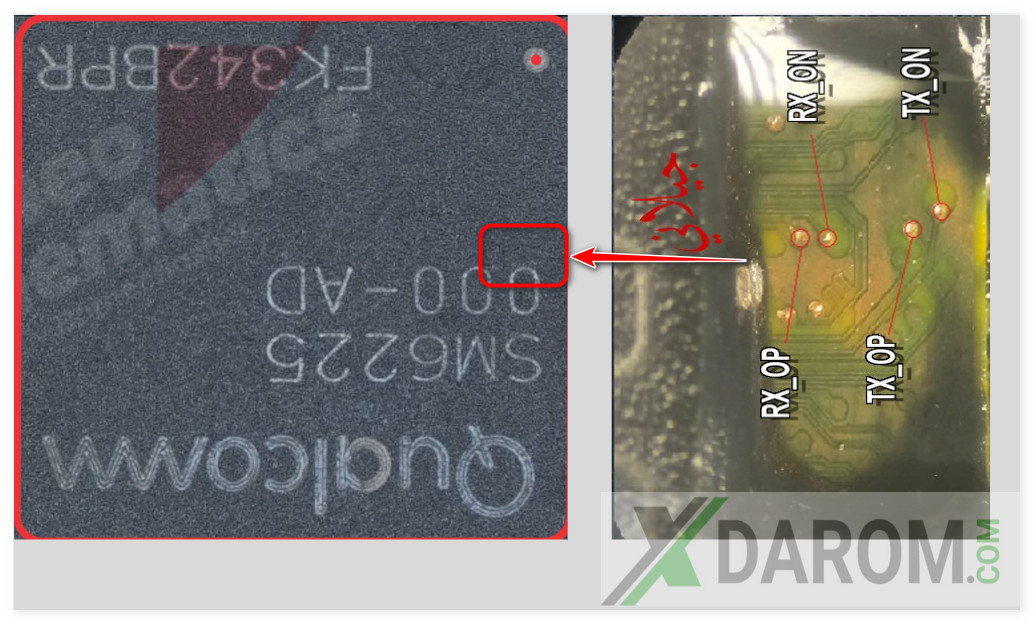

This post provides the complete ISP pinout diagram and compatible tools — so you can recover dead SM6225 devices without a working USB port or bootloader.

What Is ISP Pinout?

ISP (In-System Programming) is a technique used by phone repair engineers to communicate directly with the device's eMMC or UFS storage chip via the motherboard's test pads — bypassing the CPU and bootloader entirely. This method is used when:

• Device is completely dead (no sign of life)
• Bootloader is corrupted or bricked
• USB port is physically damaged
• EDL mode not accessible
• FRP or Pattern lock via direct flash
• IMEI repair via direct write

SM6225 (Snapdragon 680) — Chip Specifications

⚠ Warning: Always confirm the exact storage type (eMMC or UFS) of your specific device before connecting. Applying wrong voltage or wrong pinout to UFS pads can permanently destroy the storage IC. Use a multimeter to verify VCC before soldering wires.

Compatible Devices — SM6225 / Snapdragon 680

The SM6225 chipset powers a wide range of popular devices. Below are the most common models where this ISP pinout applies:

• Xiaomi Redmi 10C
• Xiaomi Redmi Note 11
• Realme 9i (4G)
• OPPO A76 / A96
• Vivo Y75 (4G)
• Samsung Galaxy A23
• Infinix Note 12 4G
• Tecno Spark 9 Pro
• OPPO Reno 7 Lite
• Moto G22

Required Tools for ISP Connection

To use ISP pinout on SM6225 devices, you will need the following hardware and software tools:

• UFI Box / Medusa Pro II
• RIFF Box 2 / Easy-JTAG Plus
• eMMC Pro / ISP Clip
• Soldering Station (fine tip)
• DC Power Supply (3.3V / 1.8V)
• Multimeter (continuity mode)
• Flux Paste + Copper Wire
• Microscope / Magnifier
